Week 3: Inner Product Spaces

Demo by Magnus Troen

from sympy import*
from dtumathtools import*
init_printing()

Inner Product in SymPy

The usual inner product \(\left<\cdot, \cdot \right>\) in a inner product space \(V\subseteq \mathbb{F}^n\) is given by:

\[ \left<\cdot, \cdot \right>: V \times V \to \mathbb{F},\phantom{...} \left<\boldsymbol{x}, \boldsymbol{y} \right> = \sum_{k=1}^{n} x_k\overline{y}_k, \]

For all \(\boldsymbol{x},\boldsymbol{y} \in V\).

This can be done in SymPy using the command \(\verb|x1.dot(x2, conjugate_convention = 'right')|\).

To avoid writing this everytime we want a inner product we define the function inner:

def inner(x1: Matrix,x2: Matrix):
    '''
    Computes the inner product of two vectors of same length.
    '''

    return x1.dot(x2, conjugate_convention = 'right')

MutableDenseMatrix.inner = inner
ImmutableDenseMatrix.inner = inner

We’ll now check that the function behaves as expected:

We’ll check with the vectors

\[\begin{split} x_1 = \left[\begin{matrix}1\\2\end{matrix}\right], x_2 = \left[\begin{matrix}2 - i\\2\end{matrix}\right] \end{split}\]

\[ \left<x_1,x_2\right> = 1\cdot(\overline{2-i}) + 2\cdot \overline{2} = 2+i + 4= 6 + i. \]

x1 = Matrix([1, 2])
x2 = Matrix([2-I, 2])

x1.inner(x2), inner(x1,x2)

As expected.

Projections onto a Line

Let \(\boldsymbol{x}, \boldsymbol{y} \in \mathbb{F}^n\), then the projection of \(\boldsymbol{x}\) onto the line \(Y = span\{\boldsymbol{y}\}\) can be computed as

\[ \operatorname{Proj}_Y(\boldsymbol{x}) = \frac{\left<\boldsymbol{x},\boldsymbol{y} \right>}{\left<\boldsymbol{y},\boldsymbol{y} \right>}\boldsymbol{y} = \left<\boldsymbol{x},\boldsymbol{u}\right>\boldsymbol{u}, \]

where \(\boldsymbol{u} = \frac{\boldsymbol{y}}{||\boldsymbol{y}||}\). In this demo we’ll use the 2-norm.

Example in \(\mathbb{R}^2\)

First let \(\boldsymbol{x}_1, \boldsymbol{x}_2 \in \mathbb{R}^2\) be given by:

\[\begin{split} \boldsymbol{x}_1 = \begin{bmatrix} 3\\6\end{bmatrix}, \boldsymbol{x}_2 = \begin{bmatrix} 2\\1\end{bmatrix}. \end{split}\]

We whish to project \(\boldsymbol{x}_1\) onto the line given by \(X_2 = span\{\boldsymbol{x}_2\}\)

x1 = Matrix([3,6])
x2 = Matrix([2,1])

projX2 = x1.inner(x2)/x2.inner(x2)*x2
projX2

\[\begin{split}\displaystyle \left[\begin{matrix}\frac{24}{5}\\\frac{12}{5}\end{matrix}\right]\end{split}\]

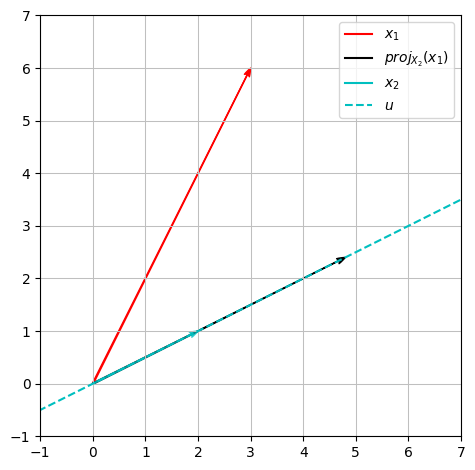

Since we are working in \(\mathbb{R}^2\), this can be illustrated:

x = symbols('x')
plot_x1 = dtuplot.quiver((0,0),x1,rendering_kw={'color':'r', 'label': '$x_1$'}, xlim = (-1,7), ylim = (-1,7), show = False)
plot_x2 = dtuplot.quiver((0,0),x2,rendering_kw={'color':'c', 'label': '$x_2$', 'alpha': 0.7}, show = False)
plot_projX2 = dtuplot.quiver((0,0),projX2,rendering_kw={'color':'k', 'label': '$proj_{X_2}(x_1)$'},show = False)
plot_X2 = dtuplot.plot(x2[1]/x2[0] * x, label = '$X_2$',rendering_kw={'color':'c', 'linestyle': '--'}, legend = True,show = False)

(plot_x1 + plot_projX2 + plot_x2 + plot_X2).show()

Example in \(\mathbb{C}^4\) using Linear Maps

First we define the vectors:

c1 = Matrix([2+I, 3, 5-I, 6])
c2 = Matrix([1, I, 3-I, 2])
u = simplify(c2/c2.norm())
c1,c2,u

\[\begin{split}\displaystyle \left( \left[\begin{matrix}2 + i\\3\\5 - i\\6\end{matrix}\right], \ \left[\begin{matrix}1\\i\\3 - i\\2\end{matrix}\right], \ \left[\begin{matrix}\frac{1}{4}\\\frac{i}{4}\\\frac{3}{4} - \frac{i}{4}\\\frac{1}{2}\end{matrix}\right]\right)\end{split}\]

Now the projection \(Proj_{c_2}\) can be described using the linear map:

\[ \boldsymbol{P}: \mathbb{C}^4 \to \mathbb{C}^4, \phantom{...} \boldsymbol{P}(\boldsymbol{c}_1) = \boldsymbol{u}\boldsymbol{u}^* \boldsymbol{c_1} \]

where \(\boldsymbol{u} = c_2/||c_2||_2\)

P = expand(u*u.adjoint())
P

\[\begin{split}\displaystyle \left[\begin{matrix}\frac{1}{16} & - \frac{i}{16} & \frac{3}{16} + \frac{i}{16} & \frac{1}{8}\\\frac{i}{16} & \frac{1}{16} & - \frac{1}{16} + \frac{3 i}{16} & \frac{i}{8}\\\frac{3}{16} - \frac{i}{16} & - \frac{1}{16} - \frac{3 i}{16} & \frac{5}{8} & \frac{3}{8} - \frac{i}{8}\\\frac{1}{8} & - \frac{i}{8} & \frac{3}{8} + \frac{i}{8} & \frac{1}{4}\end{matrix}\right]\end{split}\]

simplify(P*c1)

\[\begin{split}\displaystyle \left[\begin{matrix}\frac{15}{8}\\\frac{15 i}{8}\\\frac{45}{8} - \frac{15 i}{8}\\\frac{15}{4}\end{matrix}\right]\end{split}\]

We can check that this yeilds the same result as the previous method:

simplify(P*c1 - c1.inner(u)/u.inner(u)*u)

\[\begin{split}\displaystyle \left[\begin{matrix}0\\0\\0\\0\end{matrix}\right]\end{split}\]

The matrix \(\boldsymbol{P}\) is pr defintion hermitian, which means that \(\boldsymbol{P} = \boldsymbol{P}^*\). This can be tested by:

P.is_hermitian

True

or,

simplify(P-P.adjoint())

\[\begin{split}\displaystyle \left[\begin{matrix}0 & 0 & 0 & 0\\0 & 0 & 0 & 0\\0 & 0 & 0 & 0\\0 & 0 & 0 & 0\end{matrix}\right]\end{split}\]

Orthonormal Basis

Orthonormal bases show to be incredibly practical. One example is change of basis, which is way easier using othonormal bases.

For example let

\[\begin{split} \beta = \{_e\boldsymbol{u}_1,_e\boldsymbol{u}_2,_e\boldsymbol{u}_3\} = \left\{ \left[\begin{matrix}\frac{\sqrt{3}}{3}\\\frac{\sqrt{3}}{3}\\\frac{\sqrt{3}}{3}\end{matrix}\right], \left[\begin{matrix}\frac{\sqrt{2}}{2}\\0\\- \frac{\sqrt{2}}{2}\end{matrix}\right], \left[\begin{matrix}- \frac{\sqrt{6}}{6}\\\frac{\sqrt{6}}{3}\\- \frac{\sqrt{6}}{6}\end{matrix}\right] \right\} \end{split}\]

be an orthonormal basis for \(\mathbb{R}^3\). Now \(\phantom{ }_\beta\boldsymbol{x}\) can be computed by:

\[\begin{split} \phantom{ }_\beta\boldsymbol{x} = \begin{bmatrix} \left<_e\boldsymbol{u}_1, \phantom{ }_e\boldsymbol{x} \right>\\ \left<_e\boldsymbol{u}_2, \phantom{ }_e\boldsymbol{x} \right>\\ \left<_e\boldsymbol{u}_3, \phantom{ }_e\boldsymbol{x} \right> \end{bmatrix} \end{split}\]

for all \(\boldsymbol{x} \in \mathbb{R}^3\)

We can start by convincing ourselves that \(\beta\) is indeed an orthonormal basis for \(\mathbb{R}^3\). First and foremost, \(\boldsymbol{u}_1, \boldsymbol{u}_2,\boldsymbol{u}_3\) should be mutually orthonormal. Meaning that they should satisfy

\[\begin{split} \left< \boldsymbol{u}_i, \boldsymbol{u}_j\right> = \begin{cases} 0 & i \neq j\\ 1 & i = j\end{cases},\phantom{...} i,j = 1,2,3. \end{split}\]

u1 = Matrix([sqrt(3)/3, sqrt(3)/3, sqrt(3)/3])
u2 = Matrix([sqrt(2)/2, 0, -sqrt(2)/2])
u3 = u1.cross(u2)

u1.inner(u1), u1.inner(u2), u1.inner(u3), u2.inner(u2), u2.inner(u3), u3.inner(u3)

We have now shown that \(\beta\) is spanned by 3 orthonomal vectors in \(\mathbb{R}^3\), hence we can conclude that \(\beta\) is an orthonormal basis for \(\mathbb{R}^3\)

Now we can, for example, compute \(\boldsymbol{x} = [1,2,3]\) in the \(\beta\)-basis.

x = Matrix([1,2,3])
beta_x = Matrix([x.inner(u1) , x.inner(u2) , x.inner(u3)])
beta_x

\[\begin{split}\displaystyle \left[\begin{matrix}2 \sqrt{3}\\- \sqrt{2}\\0\end{matrix}\right]\end{split}\]

Gram-Schmidt

We have been given a basis \(\gamma = v_1,v_2,v_3,v_4\) for \(\mathbb{C}^4\), where

\[\begin{split} \boldsymbol{v}_1 = \left[\begin{matrix}2 i\\0\\0\\0\end{matrix}\right], \: \boldsymbol{v}_2 = \left[\begin{matrix}i\\1\\1\\0\end{matrix}\right], \: \boldsymbol{v}_3 = \left[\begin{matrix}0\\i\\1\\1\end{matrix}\right], \: \boldsymbol{v}_4 = \left[\begin{matrix}0\\0\\0\\i\end{matrix}\right]. \end{split}\]

We wish to compute an orthonormal basis for \(\gamma\). This can be done using the Gram-Schmidt process.

v1 = Matrix([2*I,0,0, 0])
v2 = Matrix([I, 1, 1, 0])
v3 = Matrix([0, I, 1, 1])
v4 = Matrix([0, 0, 0, I])

# Confirming that the vectors span C^4
V = Matrix.hstack(v1,v2,v3,v4)
V.rref(pivots=False)

\[\begin{split}\displaystyle \left[\begin{matrix}1 & 0 & 0 & 0\\0 & 1 & 0 & 0\\0 & 0 & 1 & 0\\0 & 0 & 0 & 1\end{matrix}\right]\end{split}\]

First let \(\boldsymbol{w}_1 = \boldsymbol{v}_1\), then \(\boldsymbol{u}_1\) is found by normalizing \(\boldsymbol{w}_1\):

w1 = v1
u1 = w1/w1.norm()
u1

\[\begin{split}\displaystyle \left[\begin{matrix}i\\0\\0\\0\end{matrix}\right]\end{split}\]

Now the remaining orthonormal vectors can be computed by:

i)

\[ \boldsymbol{w}_k = \boldsymbol{v}_k - \sum_{j = 1}^{k-1}\left<\boldsymbol{v}_k, \boldsymbol{u}_j\right>\boldsymbol{u}_j \]

ii)

\[ \boldsymbol{u}_k = \frac{\boldsymbol{w}_k}{||\boldsymbol{w}_k||_2} \]

w2 = simplify(v2 - v2.inner(u1)*u1)
u2 = expand(w2/w2.norm())

w3 = simplify(v3 - v3.inner(u1)*u1 - v3.inner(u2)*u2)
u3 = expand(w3/w3.norm())

w4 = simplify(v4 - v4.inner(u1)*u1 - v4.inner(u2)*u2 - v4.inner(u3)*u3)
u4 = expand(w4/w4.norm())

u1,u2,u3,u4

\[\begin{split}\displaystyle \left( \left[\begin{matrix}i\\0\\0\\0\end{matrix}\right], \ \left[\begin{matrix}0\\\frac{\sqrt{2}}{2}\\\frac{\sqrt{2}}{2}\\0\end{matrix}\right], \ \left[\begin{matrix}0\\- \frac{\sqrt{2}}{4} + \frac{\sqrt{2} i}{4}\\\frac{\sqrt{2}}{4} - \frac{\sqrt{2} i}{4}\\\frac{\sqrt{2}}{2}\end{matrix}\right], \ \left[\begin{matrix}0\\\frac{\sqrt{2}}{4} + \frac{\sqrt{2} i}{4}\\- \frac{\sqrt{2}}{4} - \frac{\sqrt{2} i}{4}\\\frac{\sqrt{2} i}{2}\end{matrix}\right]\right)\end{split}\]

It is left to the reader to confirm that \(\boldsymbol{u}_1,\boldsymbol{u}_2,\boldsymbol{u}_3,\boldsymbol{u}_4\) are indeed orthonormal:

simplify(u1.inner(u2))

The vectors \(\boldsymbol{u}_1,\boldsymbol{u}_2,\boldsymbol{u}_3,\boldsymbol{u}_4\) satisfy

\[ span\left\{\boldsymbol{u}_1,\boldsymbol{u}_2,\boldsymbol{u}_3,\boldsymbol{u}_4\right\} = span\left\{\boldsymbol{v}_1,\boldsymbol{v}_2,\boldsymbol{v}_3,\boldsymbol{v}_4\right\}. \]

Hence \(\boldsymbol{u}_1,\boldsymbol{u}_2,\boldsymbol{u}_3,\boldsymbol{u}_4\) span an orthonormal basis for \(\gamma\). SymPy is not suitable for this proof and we insteed refere to the proof for theorem 2.5.2.

The same results can be achieved using the SymPy command \(\verb|GramSchmidt|\):

y1,y2,y3,y4 = GramSchmidt([v1,v2,v3,v4], orthonormal=True)
y1,y2,expand(y3),expand(y4)

\[\begin{split}\displaystyle \left( \left[\begin{matrix}i\\0\\0\\0\end{matrix}\right], \ \left[\begin{matrix}0\\\frac{\sqrt{2}}{2}\\\frac{\sqrt{2}}{2}\\0\end{matrix}\right], \ \left[\begin{matrix}0\\- \frac{\sqrt{2}}{4} + \frac{\sqrt{2} i}{4}\\\frac{\sqrt{2}}{4} - \frac{\sqrt{2} i}{4}\\\frac{\sqrt{2}}{2}\end{matrix}\right], \ \left[\begin{matrix}0\\\frac{\sqrt{2}}{4} + \frac{\sqrt{2} i}{4}\\- \frac{\sqrt{2}}{4} - \frac{\sqrt{2} i}{4}\\\frac{\sqrt{2} i}{2}\end{matrix}\right]\right)\end{split}\]

Unitary and Real Orthogonal Matrices

Square matrices that satisfy

\[ \boldsymbol{U}\boldsymbol{U}^* = \boldsymbol{U}^*\boldsymbol{U} = \boldsymbol{I} \]

are called unitary.

If \(\boldsymbol{U} \in M_n(\mathbb{R})\) then \(\boldsymbol{U}\) is called real ortogonal (NOT orthonormal). Real ortogonal matrices satisfy

\[ \boldsymbol{QQ}^T = \boldsymbol{Q}^T\boldsymbol{Q} = \boldsymbol{I} \]

The matrix

\[ \boldsymbol{U} = \left[\boldsymbol{u}_1, \boldsymbol{u}_2, \boldsymbol{u}_3, \boldsymbol{u}_4\right] \]

with the u-vectors from Gram-Schmidt is unitary (this is generally true when applying Gram-Schmidt on \(n\) linear independant vectors in \(\mathbb{F}^n\)).

The matrix is:

U = Matrix.hstack(u1,u2,u3,u4)
U

\[\begin{split}\displaystyle \left[\begin{matrix}i & 0 & 0 & 0\\0 & \frac{\sqrt{2}}{2} & - \frac{\sqrt{2}}{4} + \frac{\sqrt{2} i}{4} & \frac{\sqrt{2}}{4} + \frac{\sqrt{2} i}{4}\\0 & \frac{\sqrt{2}}{2} & \frac{\sqrt{2}}{4} - \frac{\sqrt{2} i}{4} & - \frac{\sqrt{2}}{4} - \frac{\sqrt{2} i}{4}\\0 & 0 & \frac{\sqrt{2}}{2} & \frac{\sqrt{2} i}{2}\end{matrix}\right]\end{split}\]

The adjoint (= transposed and complex conjugated) matrix \(U^*\) of \(U\) is:

U.adjoint(), conjugate(U.T)

\[\begin{split}\displaystyle \left( \left[\begin{matrix}- i & 0 & 0 & 0\\0 & \frac{\sqrt{2}}{2} & \frac{\sqrt{2}}{2} & 0\\0 & - \frac{\sqrt{2}}{4} - \frac{\sqrt{2} i}{4} & \frac{\sqrt{2}}{4} + \frac{\sqrt{2} i}{4} & \frac{\sqrt{2}}{2}\\0 & \frac{\sqrt{2}}{4} - \frac{\sqrt{2} i}{4} & - \frac{\sqrt{2}}{4} + \frac{\sqrt{2} i}{4} & - \frac{\sqrt{2} i}{2}\end{matrix}\right], \ \left[\begin{matrix}- i & 0 & 0 & 0\\0 & \frac{\sqrt{2}}{2} & \frac{\sqrt{2}}{2} & 0\\0 & - \frac{\sqrt{2}}{4} - \frac{\sqrt{2} i}{4} & \frac{\sqrt{2}}{4} + \frac{\sqrt{2} i}{4} & \frac{\sqrt{2}}{2}\\0 & \frac{\sqrt{2}}{4} - \frac{\sqrt{2} i}{4} & - \frac{\sqrt{2}}{4} + \frac{\sqrt{2} i}{4} & - \frac{\sqrt{2} i}{2}\end{matrix}\right]\right)\end{split}\]

That \(U\) is indeed unitary can be verified by:

simplify(U*U.adjoint()), simplify(U.adjoint()*U)

\[\begin{split}\displaystyle \left( \left[\begin{matrix}1 & 0 & 0 & 0\\0 & 1 & 0 & 0\\0 & 0 & 1 & 0\\0 & 0 & 0 & 1\end{matrix}\right], \ \left[\begin{matrix}1 & 0 & 0 & 0\\0 & 1 & 0 & 0\\0 & 0 & 1 & 0\\0 & 0 & 0 & 1\end{matrix}\right]\right)\end{split}\]
